From WSL to Azure: A Full Infrastructure Deployment, VPN & SIEM Pipeline in One Day

Category: Cloud Infrastructure | Security | DevOps
Tags: Azure, Terraform, WSL, VPN, Microsoft Sentinel, SentinelOne, Unifi, SIEM, DevSecOps
Reading Time: ~12 minutes

TL;DR: Using nothing more than a Windows machine running WSL2, VSCode, and Terraform — we provisioned an entire Azure cloud environment, stood up a VPN gateway, and built a fully operational SIEM pipeline ingesting logs from both Unifi network hardware and SentinelOne EDR. Here’s exactly how we did it.

The Challenge

Modern security operations don’t live in one place. Your network logs are in your router. Your endpoint telemetry is in your EDR. Your cloud infrastructure is in Azure. Stitching all of this together into a single, queryable, alertable SIEM — while keeping the entire workflow reproducible and code-driven — is what separates a reactive IT team from a proactive security operation.

This post walks through exactly how we tackled that for a client environment: end-to-end, from a Windows laptop running WSL2 to a production-ready Azure SIEM pipeline.

The Stack

Layer	Technology
Local Dev Environment	Windows 11 + WSL2 (Ubuntu 22.04) + VSCode
IaC Tooling	Terraform (Azure Provider ~> 3.90)
Cloud Platform	Microsoft Azure
Connectivity	Azure VPN Gateway — IPsec Site-to-Site
SIEM	Microsoft Sentinel (Log Analytics Workspace)
Log Sources	Unifi UDM-Pro + SentinelOne EDR

Part 1 — The Dev Environment: WSL2 + VSCode

Everything starts local. Rather than spinning up a dedicated Linux jumpbox, we used WSL2 directly on the Windows workstation — full Linux tooling, one machine, one screen.

The Terraform project lives inside the WSL2 filesystem and opens in VSCode via the Remote-WSL extension. The green WSL: Ubuntu-22.04 indicator in the status bar confirms you’re operating natively in the Linux context.

WSL2 Setup

# PowerShell (Administrator)
wsl --install -d Ubuntu-22.04
wsl --set-default-version 2
wsl -l -v   # confirm VERSION 2

Tune WSL memory limits so it doesn’t consume the host during a large terraform apply:

# C:\Users\YourName\.wslconfig

[wsl2]

memory=6GB processors=4 swap=2GB localhostForwarding=true

Terraform Install (WSL)

wget -O- https://apt.releases.hashicorp.com/gpg | \
  gpg --dearmor | \
  sudo tee /usr/share/keyrings/hashicorp-archive-keyring.gpg > /dev/null

echo "deb [signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] \
  https://apt.releases.hashicorp.com $(lsb_release -cs) main" | \
  sudo tee /etc/apt/sources.list.d/hashicorp.list

sudo apt update && sudo apt install terraform -y
terraform version

Azure CLI Auth

curl -sL https://aka.ms/InstallAzureCLIDeb | sudo bash
az login
az account set --subscription "<your-subscription-id>"

Part 2 — Terraform: Deploying the Azure Foundation

A single terraform apply provisions the complete environment — VNet, subnets, NSG, NIC, forwarder VM, Log Analytics Workspace, Sentinel onboarding, and Data Collection Rule.

Project Structure

sentinel-syslog/
├── cloud-init.yaml      ← VM bootstrap (rsyslog + OMS agent)
├── main.tf
├── outputs.tf
├── variables.tf
└── terraform.tfvars     ← gitignored

providers.tf

terraform {
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "~> 3.90"
    }
  }
  required_version = ">= 1.7.0"
}

provider "azurerm" {
  features {}
  subscription_id = var.subscription_id
  tenant_id       = var.tenant_id
}

Core Resources

resource "azurerm_resource_group" "main" {
  name     = "rg-sentinel-syslog"
  location = var.location
  tags = {
    Environment = "production"
    ManagedBy   = "Terraform"
  }
}

resource "azurerm_virtual_network" "main" {
  name                = "vnet-sentinel"
  resource_group_name = azurerm_resource_group.main.name
  location            = azurerm_resource_group.main.location
  address_space       = ["10.10.0.0/16"]
}

# GatewaySubnet — exact name enforced by Azure, minimum /27
resource "azurerm_subnet" "gateway" {
  name                 = "GatewaySubnet"
  resource_group_name  = azurerm_resource_group.main.name
  virtual_network_name = azurerm_virtual_network.main.name
  address_prefixes     = ["10.10.255.0/27"]
}

resource "azurerm_subnet" "workloads" {
  name                 = "snet-syslog"
  resource_group_name  = azurerm_resource_group.main.name
  virtual_network_name = azurerm_virtual_network.main.name
  address_prefixes     = ["10.10.1.0/24"]
}

resource "azurerm_network_security_group" "syslog" {
  name                = "nsg-syslog"
  resource_group_name = azurerm_resource_group.main.name
  location            = azurerm_resource_group.main.location

  security_rule {
    name                       = "allow-syslog-inbound"
    priority                   = 300
    direction                  = "Inbound"
    access                     = "Allow"
    protocol                   = "Udp"
    source_port_range          = "*"
    destination_port_range     = "514"
    source_address_prefix      = var.onprem_cidr
    destination_address_prefix = "*"
  }
}

Log Analytics + Sentinel

resource "azurerm_log_analytics_workspace" "sentinel" {
  name                = "law-sentinel"
  resource_group_name = azurerm_resource_group.main.name
  location            = azurerm_resource_group.main.location
  sku                 = "PerGB2018"
  retention_in_days   = 90
}

resource "azurerm_sentinel_log_analytics_workspace_onboarding" "main" {
  workspace_id = azurerm_log_analytics_workspace.sentinel.id
}

Deploy

terraform init
terraform plan -out=tfplan
terraform apply tfplan

After apply, the resource group contains everything needed — VNet, NSG, NIC, VM, Log Analytics workspace, the SecurityInsights Sentinel solution, and a Data Collection Rule, all tagged ManagedBy: Terraform.

📸 Screenshot suggestion: Azure Portal → your Resource Group → Overview tab. Shows the list of resource names and types. Safe to publish — no keys, IPs, or subscription details visible at this level.

Part 3 — VPN Gateway

The VPN connects the on-premises Unifi network to the Azure VNet over an encrypted IPsec tunnel. All log traffic flows privately through this tunnel — no public internet exposure for syslog or CEF data.

Terraform VPN Resources

resource "azurerm_public_ip" "vpn_gw" {
  name                = "vpngw-pip"
  resource_group_name = azurerm_resource_group.main.name
  location            = azurerm_resource_group.main.location
  allocation_method   = "Static"
  sku                 = "Standard"
}

resource "azurerm_virtual_network_gateway" "main" {
  name                = "vpngw-sentinel"
  resource_group_name = azurerm_resource_group.main.name
  location            = azurerm_resource_group.main.location
  type                = "Vpn"
  vpn_type            = "RouteBased"
  sku                 = "VpnGw1"

  ip_configuration {
    name                          = "vnetGatewayConfig"
    public_ip_address_id          = azurerm_public_ip.vpn_gw.id
    private_ip_address_allocation = "Dynamic"
    subnet_id                     = azurerm_subnet.gateway.id
  }
}

resource "azurerm_local_network_gateway" "onprem" {
  name                = "lng-onprem"
  resource_group_name = azurerm_resource_group.main.name
  location            = azurerm_resource_group.main.location
  gateway_address     = var.onprem_public_ip
  address_space       = [var.onprem_cidr]
}

resource "azurerm_virtual_network_gateway_connection" "s2s" {
  name                       = "conn-onprem-s2s"
  resource_group_name        = azurerm_resource_group.main.name
  location                   = azurerm_resource_group.main.location
  type                       = "IPsec"
  virtual_network_gateway_id = azurerm_virtual_network_gateway.main.id
  local_network_gateway_id   = azurerm_local_network_gateway.onprem.id
  shared_key                 = var.vpn_shared_key
}

Note: VPN Gateway provisioning takes 25–45 minutes. Terraform will appear to hang on this resource — this is normal.

Unifi IPsec Settings

Configure the Unifi UDM-Pro under Settings → VPN → Site-to-Site VPN:

Setting	Value
VPN Type	IPsec
VPN Method	Route Based
Remote IP	(Azure VPN Gateway public IP from `terraform output`)
Key Exchange	IKEv1
Encryption	AES-128
Hash	SHA1
DH Group	14
PFS	Enabled

Part 4 — Log Forwarder VM

The vm-syslog VM sits at a private IP in the workloads subnet. Because the VPN tunnel is live, SSH access is entirely over the private tunnel — no public IP, no Bastion needed.

cloud-init.yaml (VM Bootstrap)

package_update: true
packages:
  - rsyslog

runcmd:
  - wget https://raw.githubusercontent.com/Microsoft/OMS-Agent-for-Linux/master/installer/scripts/onboard_agent.sh
  - |
    sh onboard_agent.sh \
      -w ${workspace_id} \
      -s ${workspace_key} \
      -d opinsights.azure.com
  - systemctl enable rsyslog && systemctl restart rsyslog

rsyslog Forwarding Config

# /etc/rsyslog.d/50-unifi.conf
module(load="imudp")
input(type="imudp" port="514")

if $fromhost-ip == '<UNIFI_IP>' then {
    action(type="omfwd" target="127.0.0.1" port="25224" protocol="tcp")
    stop
}

# /etc/rsyslog.d/60-sentinelone.conf
:rawmsg, contains, "CEF:" {
    action(type="omfwd" target="127.0.0.1" port="25226" protocol="tcp")
    stop
}

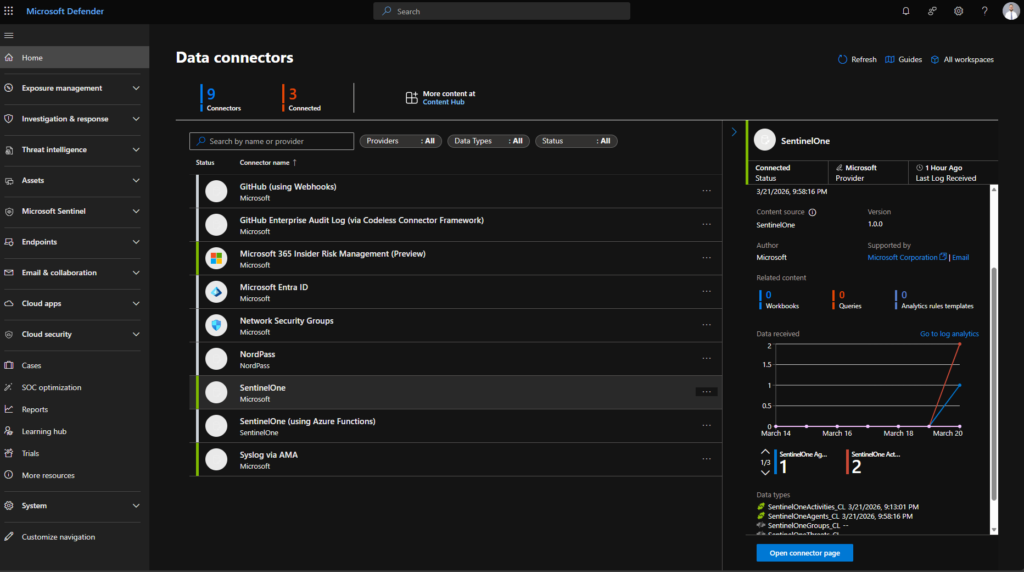

Part 5 — Microsoft Sentinel

With logs flowing from both sources, Microsoft Sentinel provides a unified view for querying, correlation, and alerting.

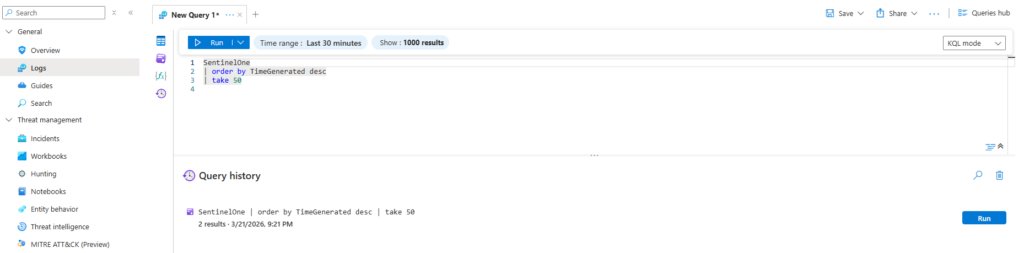

Validating Both Log Sources

// Unifi syslog events
Syslog
| where ProcessName contains "unifi"
| project TimeGenerated, Computer, ProcessName, SyslogMessage
| order by TimeGenerated desc
| take 20

// SentinelOne CEF events
CommonSecurityLog
| where DeviceVendor == "SentinelOne"
| summarize EventCount = count() by Activity, bin(TimeGenerated, 1h)

// Both sources combined
union Syslog, CommonSecurityLog
| summarize Events = count() by Type, bin(TimeGenerated, 1h)
| render timechart

The Result

A fully code-driven, VPN-secured, multi-source SIEM — deployed in a single day from a Windows laptop. Every resource is defined in Terraform, tagged, and reproducible. On-premises network telemetry and endpoint detections flow privately over the VPN into Microsoft Sentinel, where a single KQL query correlates both sources simultaneously.

Nothing was clicked into existence. Everything is in code.
